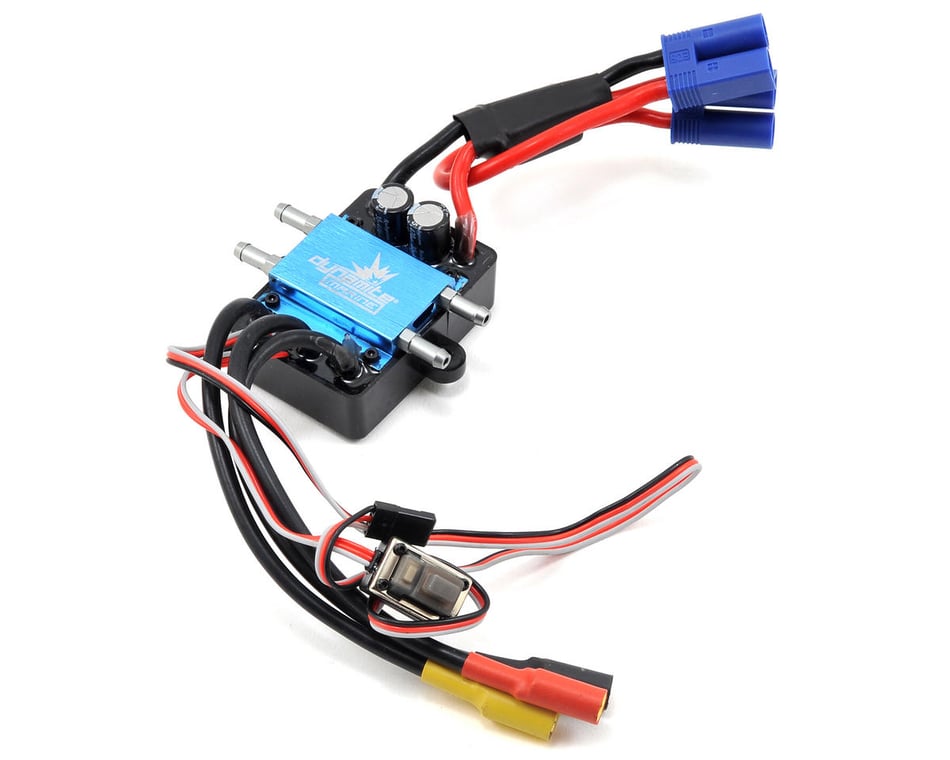

Dynamite 120A Brushless Marine ESC 2-6S (Dual Connector) [DYNM3875]

This is a Dynamite 120 Amp, 2-6S, Brushless Marine ESC. This ESC is the stock replacement for the Pro Boat Blackjack 29 V3, but can also be used in any marine application that could benefit from a high current, water cooled, programmable ESC.

Features:

• 120A Continuous current
• 2-6S LiPo / 6-18 cell NiMH compatible
• Fully Programmable
• Waterproof and water cooled

Specifications:

Forward: Yes
Reverse: Yes
Brake: Yes
Time Delay Brake: Yes
Continuous Maximum Current: 120A
Input Voltage: 2-6S LiPo, 6-18 Cells NiMH
Input Connector Types: EC5 x2
Output Connector Types: 5.5mm Bullet
Momentary Peak Current: 720A
Length: 2.40 in (61mm)
Width: 2.26 in (57.3mm)
Height: 1.19 in (30.2mm)
Weight: 5.29 oz (150g)
BEC Voltage: 6V
PWM Frequency: 8kHz
Overload Protection: Yes
Full On Resistance: .0005 ohms
Auto Cutoff: Yes
